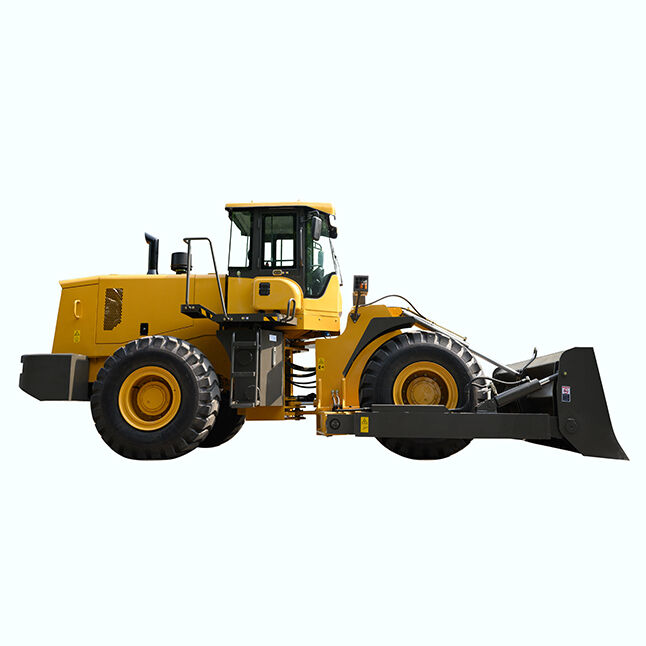

| 起源の場所 | 中国 |
| ブランド名 | HORNQUIP |
| モデル番号 | DL260 |
| performance | Overall Dimension | 7250×3600×3450mm |
| Wheel base | 3400mm | |
| Wheel track | 2240mm | |
| Height of shovel blade | 1000mm | |
| Operating weight | 21500kg | |
| Max. lift height of dozer blade | 1060mm | |
| Max. depth of dozer blade | 400mm | |
| Width of shovel blade | 3600mm | |
| Gradeability | 25° | |
| engine | Model of engine | CUMMINS 6CTA8.3-C260-II (EURO 2) |
| Pattern | Turbo, in-line, water-cooled, 4-stroke, direct injection | |
| Rated power | 194KW | |
| Rated rotary speed | 2200r/min | |
| Max. torque | 1500N.m | |
| Min. fuel consuming rate | 220g/kw.h | |
| Total displacement | 8.3L | |
| Transmission system | Model of torque device | ZL60D-II |
| Pattern | Powershift, countershaft | |
| Number of gear | 4 forward,4 reverse | |
| Max. travel speed | 40km/h | |
| Axle | Feicheng/Laiyang | |
| Main reducer type | Spiral bevel gear first class reduction | |
| Final reducer | Single stage planetary | |
| Tire size | 23.5-25 | |
| Steering system | Pattern | Articulated, full hydraulic |
| Min. turning radius(outside of bucket) | 7268mm | |
| Max. turning angle | 35°±1 | |
| Working hydraulic system | Working pump | CBGJ2100/1010/2063-0010 |
| Displacement | 250L/min | |
| System working pressure | 20.3MPa | |
| Distribution device model | 32 | |
| Pilot valve mode | DJS | |
| brake | Brake system | Gas cap oil caliper disc on 4 wheels |
| Parking brake | Hand operated caliper disc |
