| 起源の場所 | 中国 |
| ブランド名 | HORNQUIP |

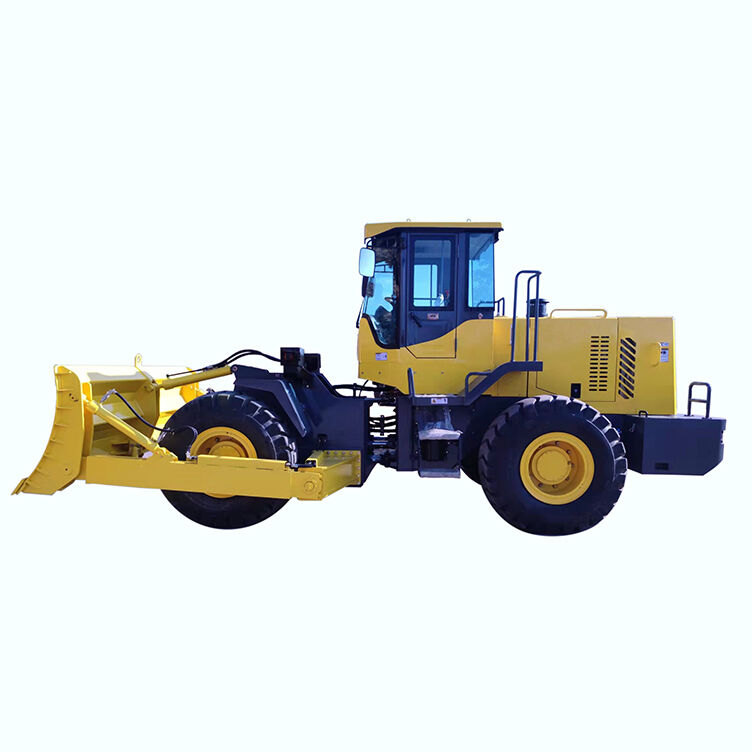

| モデル番号 | DL180 |
| performance | Overall Dimension | 7150×3250×3390mm |
| Wheel base | 3400mm | |
| Wheel track | 1850mm | |
| Height of shovel blade | 1000mm | |
| Operating weight | 13500kg | |
| Max. lift height of dozer blade | 850 | |
| Max. depth of dozer blade | 235 | |
| Width of shovel blade | 3250mm | |
| Gradeability | 30° | |
| engine | Model of engine | WECHAI WP6G175E22 (EURO 2) |
| Pattern | Turbo, in-line, water-cooled, 4-stroke, direct injection | |
| Rated power | 129KW | |
| Rated rotary speed | 2200r/min | |
| Max. torque | 640N.m | |
| Min. fuel consuming rate | 96g/kw.h | |
| Total displacement | 6.75L | |
| Transmission system | Model of torque device | HANGZHOU ADVANCE |
| Pattern | Planetary | |
| Number of gears | 2 forward,1 reverse | |
| Max. travel speed | 38km/h | |
| Axle | Yunyu | |
| Main reducer type | Spiral bevel gear first class reduction | |
| Final reducer | Single stage planetary | |
| Tire size | 20.5-25 | |
| Steering system | Pattern | Articulated, full hydraulic |
| Min. turning radius(outside of bucket) | 6708mm | |
| Max. turning angle | 38°±1 | |
| Working hydraulic system | Working pump | 2080-1010 |
| Displacement | 250L/min | |
| System working pressure | 18MPa | |
| Distribution device model | 32 | |
| Pilot valve model | DJS | |
| brake | Brake system | Gas cap oil caliper disc on 4 wheels |
| Parking brake | Hand operated caliper disc |
